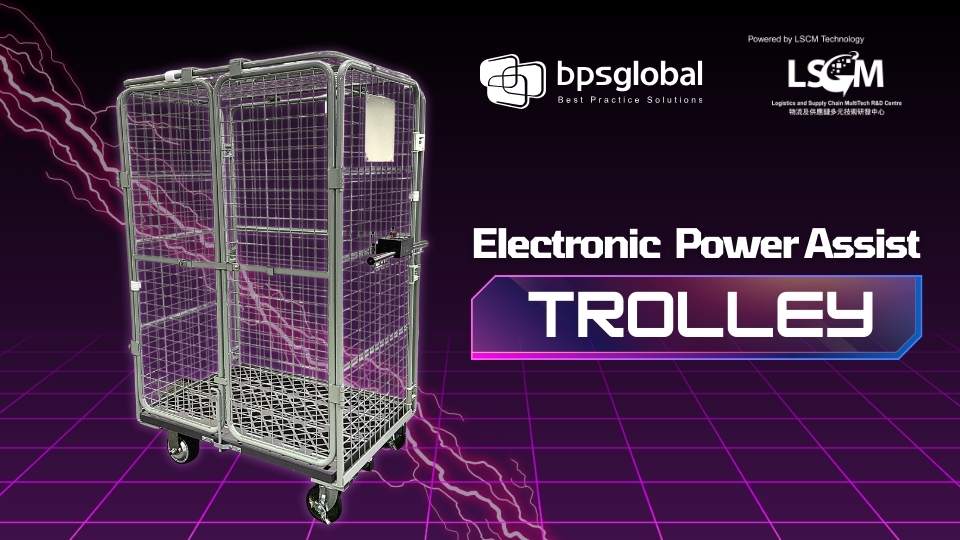

Electronic Power Assist Trolley
The Intelligent Power-Assist Trolley features intuitive controls, engineered with advanced sensors integrated directly into the handle.
When an operator pushes the trolley, these sensors detect the precise level of force applied. An onboard AI controller then calculates the required torque 100 times per second.
This information is relayed to two powerful motors connected to the wheels, which multiply the torque to provide immediate, seamless power assistance — whether turning left, right, moving forwards, or backwards.
Say Goodbye to Strain, Redefining Material Handling Standards
In traditional logistics and warehousing operations, constantly pushing and pulling fully loaded, heavy cage trolleys is a primary cause of occupational strain and inefficiency among staff. To address this pain point, the "Smart Electronic Power Assist Trolley," developed by the Logistics and Hong Kong Logistics and Supply Chain MultiTech R&D Centre (LSCM) and exclusively distributed in Hong Kong by Hong Kong Logistics Technology & System Limited (HKLTS), brings a revolutionary breakthrough to the industry.
This internationally award-winning smart equipment combines advanced AI sensing with robust power output. Whether handling heavy loads up to 300kg or navigating steep slopes, it empowers a single employee to complete handling tasks effortlessly and safely, significantly boosting overall corporate operational efficiency and Occupational Safety and Health standards.
Product Overview
The Intelligent Power-Assist Trolley is engineered to address the challenges of manually handling heavy loads with traditional cage trolleys. Whether moving goods weighing up to 300kg, navigating slopes or covering long distances, operators can perform tasks with remarkable ease and minimal physical strain. The trolley is equipped with a dual braking system, combining electronic regenerative and mechanical locking brakes, to ensure maximum safety, especially on inclines or uneven terrain.
Furthermore, its unique wireless, detachable handle allows a single handle to be used with multiple trolley bases. This innovative feature maximises operational flexibility and significantly reduces the total cost of ownership. Built for all-weather durability, the trolley operates reliably in demanding industrial environments. The high-performance lithium battery, certified to international safety standards, supports extended operation and can be swapped quickly to ensure uninterrupted workflow.
This trolley sets a new benchmark for efficiency and safety in the logistics, healthcare, and retail sectors, streamlining materials handling for any modern enterprise.
Key Features
- Perfectly Intuitive Operation: Force-sensitive controls replicate the feel of a traditional trolley — no buttons or joysticks required. This ensures a zero-learning curve for staff of any age or experience level.

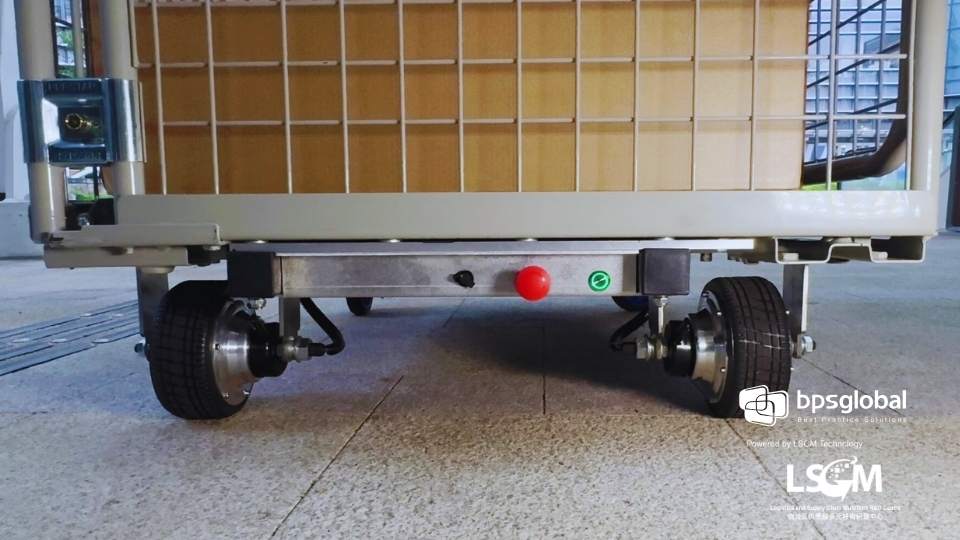

- Heavy-Duty Brushless Geared Motors: Equipped with highly efficient and durable brushless DC geared motors for powerful performance. Effortlessly pushes and pulls heavy loads while offering a long service life with minimal maintenance.
- Dual Safety Braking System: Combines electronic regenerative braking for safe descent control and energy recovery with a mechanical lock for secure parking on slopes.

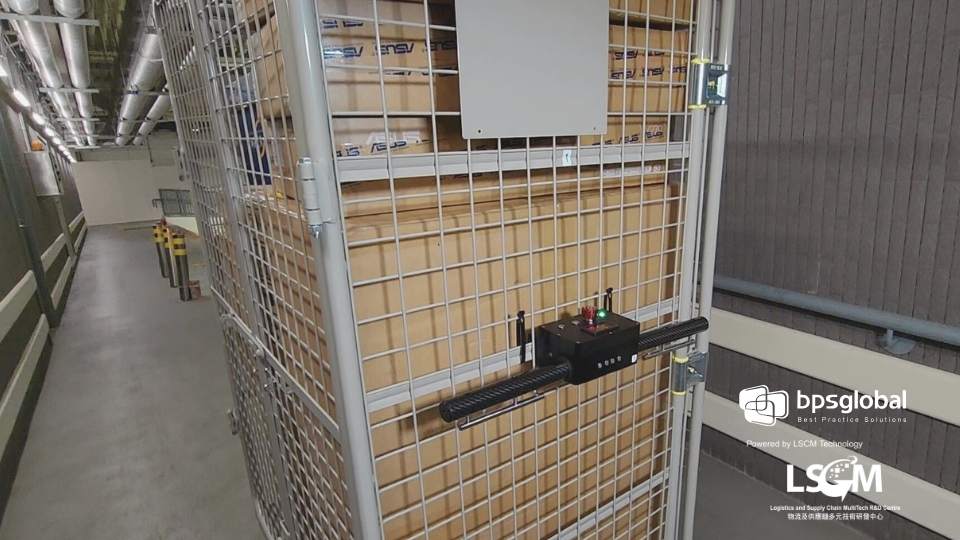

- Wireless Detachable Handle: Features one-click attachment and detachment. A single handle can be paired automatically with multiple trolleys, enhancing on-site flexibility, reducing total equipment cost, and simplifying maintenance. The unit is fully waterproof for enhanced safety.
- High-Performance Battery with Certified Safety: The 36V lithium battery (CE/RoHS/UN38.3 certified) provides up to 10 hours of continuous operation or 12 km of travel on a level surface. It is hot-swappable for uninterrupted workflow.
- All-Weather, Rugged Design: Operates reliably in temperatures from -10°C to 50°C. Built to withstand rain, making it ideal for outdoor, cold storage, and demanding industrial environments.
Ideal Application Scenarios
- Logistics & Warehousing: Simplifies the long-distance transport of heavy goods, reducing physical strain and the risk of occupational injuries.
- Healthcare / Hospitality / Retail: Enables staff of all strengths and ages to safely and independently move large quantities of laundry, supplies, or equipment.
- Wholesale & Retail: Boosts manpower efficiency and supports operations during night shifts or in adverse weather conditions.
- Smart Fleet Management: Reduces total investment cost by allowing a small number of handles to serve a large fleet of trolley bases.
Technical Specifications
- Max. Load Capacity: 300 kg (enabling single-person operation for heavy loads)
- Max. Speed: 5.0 km/h (faster than average walking pace to boost efficiency)
- Gradient Capability: Safely ascends and descends slopes of up to 10% (1:10 gradient)
- Dimensions: 1100 (L) x 800 (W) x 1700 (H) mm | Wheel Diameter: 160 mm (standard size for medical/hospitality/logistics cage trolleys)
- Operating Range: Approx. 12 km or 10 hours of continuous use on a level surface per full charge.
- Safety Features: Emergency stop button, On/Off switch, and auto power-off function for energy conservation.
- Net Weight: 100 kg
Download Sales Leaflets
